首頁進口晶振愛普生晶振X1G0039010095 TG-5501CA CMOS 20MHZ 微波BTS專用
pdfs

    X1G0039010095 TG-5501CA CMOS 20MHZ 微波BTS專用

  • 編號：6933638
  • 頻率：20MHZ
  • 尺寸：7.0*5.0mm
  • RoHS
  • RoHS2
X1G0039010095TG-5501CACMOS20MHZ微波BTS專用，尺寸為7050mm,頻率為20MHZ,電壓3.1~3.4V，日本進口晶振，愛普生晶振，CMOS輸出晶振，有源晶振，石英晶體振蕩器，7050mm晶振，20MHZ晶振，TCXO溫補晶振，OSC振蕩器，網絡...

X1G0039010095 TG-5501CA CMOS 20MHZ 微波BTS專用，尺寸為7050mm,頻率為20MHZ,電壓3.1~3.4V，日本進口晶振，愛普生晶振，CMOS輸出晶振，有源晶振，石英晶體振蕩器，7050mm晶振，20MHZ晶振，TCXO溫補晶振，OSC振蕩器，網絡同步晶振，網絡設備晶振，智能家居晶振，無線電子晶振，藍牙音響晶振，羅拉模塊晶振，微波BTS專用晶振，X1G0039010090晶振，X1G0039010089晶振。
貼片有源晶振產品主要用于網絡同步，Stratum3，微波BTS，羅拉模塊，智能家居，無線電子等領域。X1G0039010095 TG-5501CA CMOS 20MHZ 微波BTS專用

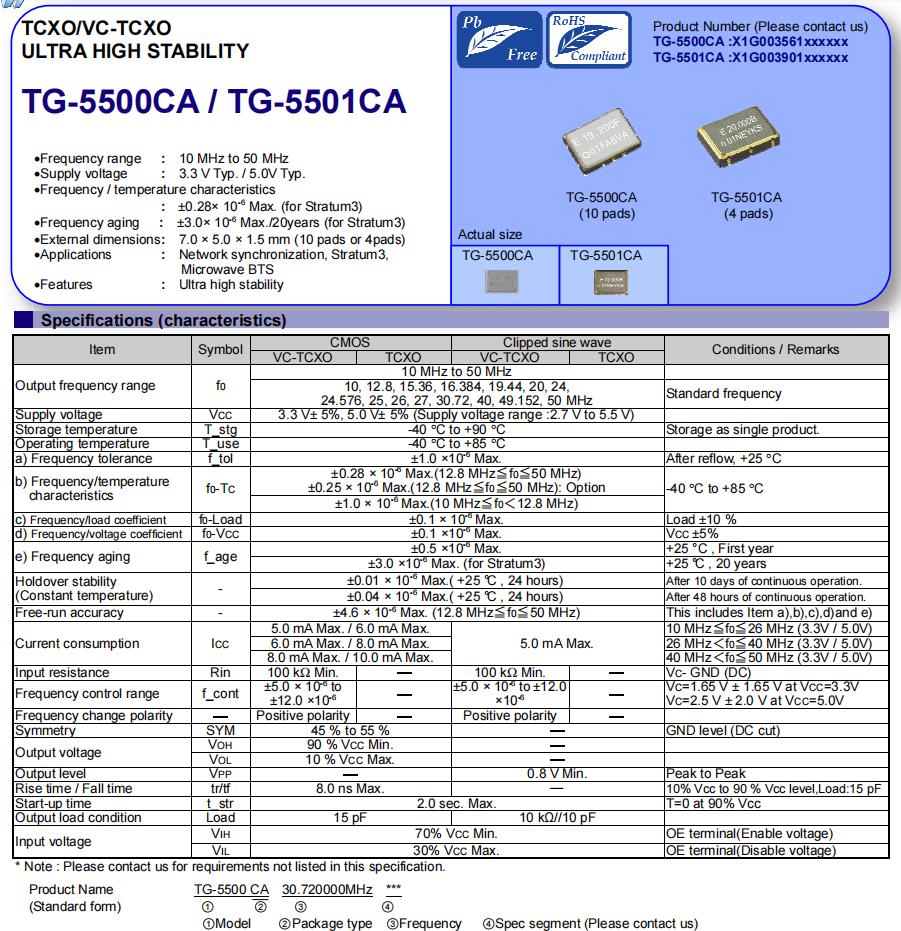

X1G0039010095 TG-5501CA CMOS 20MHZ 微波BTS專用   參數表
Item Symbol CMOS Clipped sine wave Conditions / Remarks
VC-TCXO TCXO VC-TCXO TCXO
Output frequency range 0 10 MHz to 50 MHz
10, 12.8, 15.36, 16.384, 19.44, 20, 24,
24.576, 25, 26, 27, 30.72, 40, 49. 152, 50 MHz		 Standard frequency
Supply voltage VCC 3.3 V± 5%, 5.0 V± 5% (Supply voltage range :2.7 V to 5.5 V)
Storage temperature T_stg -40 °C to +90 °C Storage as single product.
Operating temperature T_use -40 °C to +85 °C
a) Frequency tolerance f_tol ± 1.0 ×10-6  Max. After reflow, +25 °C
b) Frequency/temperature
   characteristics		 0-TC ±0.28 × 10-6  Max.(12.8 MHz元f0 元50 MHz)
±0.25 × 10-6  Max.(12.8 MHz元f0 元50 MHz): Option		 -40 °C to +85 °C
±1.0 × 10-6  Max.(10 MHz元f0 <12.8 MHz)
c) Frequency/load coefficient 0-Load ±0. 1 × 10-6  Max. Load ±10 %
d) Frequency/voltage coefficient 0-VCC ±0. 1 ×10-6  Max. VCC ±5%
e) Frequency aging f_age ±0.5 ×10-6  Max. +25 °C , First year
±3.0 ×10-6  Max. (for Stratum3) +25 °C , 20 years
Holdover stability
(Constant temperature)		 - ±0.01 × 10-6  Max.( +25 °C , 24 hours) After 10 days of continuous operation .
±0.04 × 10-6  Max.( +25 °C , 24 hours) After 48 hours of continuous operation .
Free-run accuracy - ±4.6 × 10-6  Max. (12.8 MHz元f0 元50 MHz) This includes Item a),b),c),d)and e)
Current consumption ICC 5.0 mA Max. / 6.0 mA Max. 5.0 mA Max. 10 MHz元f0 元26 MHz (3.3V / 5.0V)
6.0 mA Max. / 8.0 mA Max. 26 MHz
8.0 mA Max. / 10.0 mA Max. 40 MHz
Input resistance Rin 100 k? Min. - 100 k? Min. - VC- GND (DC)
Frequency control range f_cont ±5.0 × 10-6  to
±12.0 ×10-6		 - ±5.0 × 10-6 to ±12.0
×10-6		 - VC=1.65 V ± 1.65 V at VCC=3.3V
VC=2.5 V ± 2.0 V at VCC=5.0V
Frequency change polarity - Positive polarity - Positive polarity -
Symmetry SYM 45 % to 55 % - GND level (DC cut)
Output voltage VOH 90 % VCC Min. -
VOL 10 % VCC Max. -
Output level VPP - 0.8 V Min. Peak to Peak
Rise time / Fall time tr/tf 8.0 ns Max. 10% Vcc to 90 % Vcc level,Load:15 pF
Start-up time t_str 2.0 sec. Max. T=0 at 90% Vcc
Output load condition Load 15 pF 10 kQ// 10 pF
Input voltage VIH 70% VCC Min. OE terminal(Enable voltage)
VIL 30% VCC Max. OE terminal(Disable voltage)
X1G0039010095晶振  特點
頻率范圍:10mhz~50mhz
•供電電壓:3.3 V/ 5.0V類型
•頻率/溫度特性
±0.28×10-6(Stratum3)
頻率老化:±3.0×10-6 Max。/20年(第3層)
•外部尺寸:7.0×5.0×1.5 mm(10墊或4墊)
•特點:超高穩定性

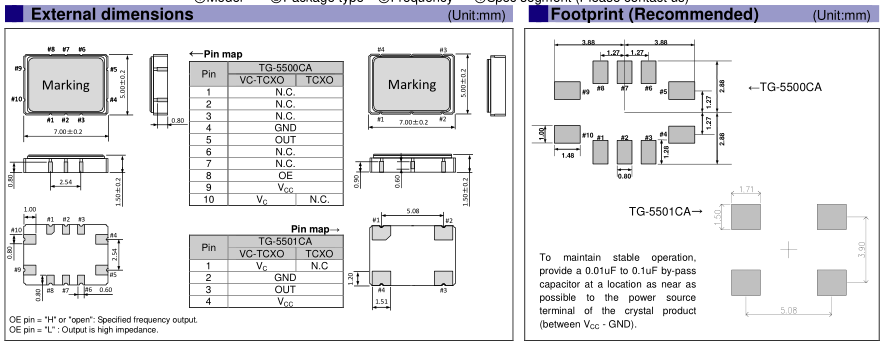

X1G0039010095 TG-5501CA CMOS 20MHZ 微波BTS專用  尺寸圖

更多相關愛普生晶振型號
Product Number Model Frequency LxWxH Output Wave Supply Voltage F.Tol@25°C Ope Temperature
X1G0035610204 TG-5500CA 15.360000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0035810029 TG-5021CG 33.600000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 2.700 to 3.300 V +/-2.0 ppm -30 to +85 °C
X1G0035810035 TG-5021CG 32.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 2.700 to 3.300 V +/-2.0 ppm -30 to +85 °C
X1G0035810039 TG-5021CG 30.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 2.660 to 2.940 V +/-2.0 ppm -30 to +85 °C
X1G0038210044 TG-5021CE 24.000000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 2.850 to 3.150 V +/-1.5 ppm -40 to +85 °C
X1G0038310001 TG-5035CE 19.200000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 1.700 to 1.900 V +/-2.0 ppm -30 to +85 °C
X1G0038310004 TG-5035CE 16.369000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 2.650 to 3.040 V +/-1.0 ppm -30 to +85 °C
X1G0038310005 TG-5035CE 16.368000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 2.650 to 3.040 V +/-1.0 ppm -30 to +85 °C
X1G0038310014 TG-5035CE 16.369000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 1.800 to 3.000 V +/-2.0 ppm -40 to +85 °C
X1G0038310025 TG-5035CE 26.000000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 1.700 to 1.900 V +/-2.0 ppm -40 to +85 °C
X1G0038310034 TG-5035CE 26.000000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 2.900 to 3.100 V +/-2.0 ppm -20 to +85 °C
X1G0038310035 TG-5035CE 26.000000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 1.700 to 3.300 V +/-1.5 ppm -40 to +85 °C
X1G0038310038 TG-5035CE 16.368000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 2.400 to 2.600 V +/-1.5 ppm -40 to +85 °C
X1G0038310047 TG-5035CE 19.200000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 3.135 to 3.465 V +/-2.0 ppm -40 to +85 °C
X1G0038310051 TG-5035CE 30.720000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 3.135 to 3.465 V +/-2.0 ppm -30 to +85 °C
X1G0038310053 TG-5035CE 16.000000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 1.700 to 3.600 V +/-2.0 ppm -30 to +85 °C
X1G0038310055 TG-5035CE 26.000000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 2.660 to 2.940 V +/-1.5 ppm -40 to +85 °C
X1G0038310056 TG-5035CE 24.576000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 1.700 to 3.600 V +/-2.0 ppm -30 to +85 °C
X1G0038410002 TG-5035CJ 26.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 1.900 V +/-2.0 ppm -30 to +85 °C
X1G0038410004 TG-5035CJ 26.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 1.900 V +/-1.5 ppm -30 to +85 °C
X1G0038410010 TG-5035CJ 33.600000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 3.300 V +/-1.5 ppm -30 to +85 °C
X1G0038410011 TG-5035CJ 16.369000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 1.900 V +/-2.0 ppm -30 to +85 °C
X1G0038410015 TG-5035CJ 26.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 1.900 V +/-2.5 ppm -30 to +85 °C
X1G0038410017 TG-5035CJ 26.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 1.900 V +/-1.5 ppm -30 to +85 °C
X1G0038410026 TG-5035CJ 38.400000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 1.900 V +/-2.0 ppm -30 to +85 °C
X1G0038410027 TG-5035CJ 52.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 1.900 V +/-2.0 ppm -30 to +85 °C
X1G0038410029 TG-5035CJ 16.368000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -30 to +85 °C
X1G0038410030 TG-5035CJ 24.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 2.600 to 3.000 V +/-2.0 ppm -40 to +85 °C
X1G0038410033 TG-5035CJ 16.369000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 1.900 V +/-2.0 ppm -40 to +85 °C
X1G0038410034 TG-5035CJ 26.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -40 to +85 °C
X1G0038410040 TG-5035CJ 24.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 2.600 to 3.000 V +/-2.0 ppm -40 to +85 °C
X1G0038410048 TG-5035CJ 16.368000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -40 to +85 °C
X1G0038410052 TG-5035CJ 26.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 1.900 V +/-1.5 ppm -40 to +85 °C
X1G0038410054 TG-5035CJ 16.367667 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -40 to +85 °C
X1G0038510014 TG-5035CG 16.369000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 1.900 V +/-2.0 ppm -30 to +85 °C
X1G0038510016 TG-5035CG 16.368000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 2.660 to 2.940 V +/-2.0 ppm -30 to +85 °C
X1G0038510032 TG-5035CG 24.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 3.135 to 3.465 V +/-2.0 ppm -40 to +85 °C
X1G0038510039 TG-5035CG 32.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 3.300 V +/-1.0 ppm -10 to +55 °C
X1G0038510042 TG-5035CG 40.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -40 to +85 °C
X1G0038510043 TG-5035CG 38.400000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 1.900 V +/-1.5 ppm -30 to +85 °C
X1G0038510049 TG-5035CG 16.369000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -40 to +85 °C
X1G0038510051 TG-5035CG 33.600000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 3.300 V +/-1.0 ppm -30 to +85 °C
X1G0038510077 TG-5035CG 24.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 3.600 V +/-2.0 ppm -40 to +85 °C
X1G003851A058 TG-5035CG 26.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 1.700 to 1.900 V +/-2.0 ppm -40 to +85 °C
X1G0039010051 TG-5501CA 24.576000 MHz 7.00 x 5.00 x 1.50 mm CMOS 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010057 TG-5501CA 49.152000 MHz 7.00 x 5.00 x 1.50 mm CMOS 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010083 TG-5501CA 27.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010085 TG-5501CA 15.360000 MHz 7.00 x 5.00 x 1.50 mm CMOS 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010087 TG-5501CA 26.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010089 TG-5501CA 16.384000 MHz 7.00 x 5.00 x 1.50 mm CMOS TCXO振蕩器 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010090 TG-5501CA 25.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010091 TG-5501CA 19.440000 MHz 7.00 x 5.00 x 1.50 mm CMOS 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010093 TG-5501CA 40.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010095 TG-5501CA 20.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010097 TG-5501CA 50.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010098 TG-5501CA 10.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010101 TG-5501CA 10.000000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010102 TG-5501CA 12.800000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010103 TG-5501CA 16.384000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010104 TG-5501CA 19.440000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010107 TG-5501CA 25.000000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010108 TG-5501CA 26.000000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010109 TG-5501CA 27.000000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010200 TG-5501CA 30.720000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010201 TG-5501CA 40.000000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010202 TG-5501CA 49.152000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010203 TG-5501CA 50.000000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0039010204 TG-5501CA 15.360000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 3.135 to 3.465 V +/-1.0 ppm -40 to +85 °C
X1G0041310004 TG-5006CJ 26.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 1.900 V +/-2.0 ppm -30 to +85 °C
X1G0041310006 TG-5006CJ 16.367667 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -30 to +85 °C
X1G0041310007 TG-5006CJ 16.368000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -30 to +85 °C
X1G0041310008 TG-5006CJ 16.369000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -30 to +85 °C
X1G0041310009 TG-5006CJ 19.200000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -30 to +85 °C
X1G0041310010 TG-5006CJ 26.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -30 to +85 °C
X1G0041310011 TG-5006CJ 38.400000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -30 to +85 °C
X1G0041310013 TG-5006CJ 16.367667 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -30 to +85 °C
X1G0041310014 TG-5006CJ 16.368000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -30 to +85 °C
X1G0041310015 TG-5006CJ 16.369000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -30 to +85 °C
X1G0041310016 TG-5006CJ 19.200000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -30 to +85 °C
X1G0041310017 TG-5006CJ 26.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -30 to +85 °C
X1G0041310018 TG-5006CJ 38.400000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -30 to +85 °C
X1G0041310026 TG-5006CJ 40.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 2.850 to 3.150 V +/-1.5 ppm -30 to +85 °C
X1G0041310029 TG-5006CJ 19.200000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 2.600 to 3.000 V +/-2.0 ppm -30 to +85 °C
X1G0041310031 TG-5006CJ 40.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 3.465 V +/-2.0 ppm -30 to +85 °C
X1G0041310032 TG-5006CJ 26.635300 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 2.700 to 3.465 V +/-2.0 ppm -30 to +85 °C
X1G0041310033 TG-5006CJ 28.974000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 2.700 to 3.465 V +/-2.0 ppm -30 to +85 °C
X1G0041310034 TG-5006CJ 26.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 1.900 V +/-1.5 ppm -30 to +85 °C
X1G0041310036 TG-5006CJ 26.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 2.660 to 2.940 V +/-1.5 ppm -30 to +85 °C
X1G0041310037 TG-5006CJ 19.200000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 2.660 to 2.940 V +/-2.0 ppm -30 to +85 °C
X1G0041310038 TG-5006CJ 26.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 1.900 V +/-2.0 ppm -30 to +85 °C
X1G0041310041 TG-5006CJ 40.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -40 to +85 °C
X1G0041310042 TG-5006CJ 32.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 3.465 V +/-2.0 ppm -30 to +85 °C
X1G0041310044 TG-5006CJ 24.576000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 3.135 to 3.465 V +/-2.0 ppm -30 to +85 °C
X1G0041310049 TG-5006CJ 26.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 1.700 to 1.900 V +/-2.0 ppm -30 to +85 °C
X1G0042010006 TG-5006CE 16.367667 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 1.700 to 1.900 V +/-2.0 ppm -30 to +85 °C
X1G0042010008 TG-5006CE 16.369000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -30 to +85 °C
X1G0042010010 TG-5006CE 26.000000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -30 to +85 °C
X1G0042010013 TG-5006CE 16.367667 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -30 to +85 °C
X1G0042010017 TG-5006CE 26.000000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -30 to +85 °C
X1G0042010020 TG-5006CE 26.000000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 2.660 to 2.940 V +/-2.0 ppm -30 to +85 °C
X1G0042010023 TG-5006CE 26.000000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 1.700 to 3.465 V +/-2.0 ppm -30 to +85 °C
X1G0042010025 TG-5006CE 32.000000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 1.700 to 3.300 V +/-2.0 ppm -30 to +85 °C
X1G0042010026 TG-5006CE 26.000000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 2.660 to 2.940 V +/-2.0 ppm -30 to +85 °C
X1G0042010032 TG-5006CE 20.000000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 3.135 to 3.465 V +/-2.0 ppm -30 to +85 °C
