愛普生VG7050EFN差分晶振,X1G0054910023,VCXO壓控晶體振蕩器,6G無線晶振

編號：81339314
頻率：130.031746 MHz
尺寸：7.0x5.0mm

愛普生VG7050EFN差分晶振,X1G0054910023,VCXO壓控晶體振蕩器,6G無線晶振，日本進口晶振，EPSON愛普生晶振，型號：VG7050EFN，編碼為：X1G0054910023，頻率為：130.031746MHz，小體積晶振尺寸：7.0x5.0mm，六腳貼片晶振...

愛普生VG7050EFN差分晶振,X1G0054910023,VCXO壓控晶體振蕩器,6G無線晶振，日本進口晶振，EPSON愛普生晶振，型號：VG7050EFN，編碼為：X1G0054910023，頻率為：130.031746 MHz，小體積晶振尺寸：7.0x5.0mm，六腳貼片晶振，VCXO壓控晶體振蕩器，LV-PECL輸出差分晶體振蕩器，有源晶振，石英晶振，VG7050EFN差分晶振具有多種輸出功能，能夠輕易識別網絡信號以及精確的處理雙極信號。具有超小型，輕薄型，低抖動，低功耗，低相位噪聲，低電源電壓，低電平等特點。廣泛應用于：移動通訊設備，無線藍牙模塊，物聯網，安防設備，儀器儀表，路由器/交換機，以太網，物聯網等應用。

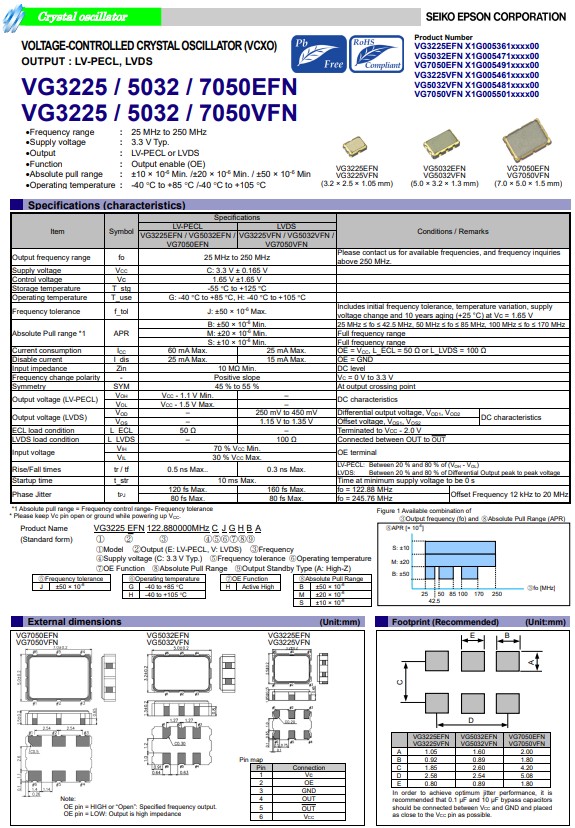

愛普生VG7050EFN差分晶振,X1G0054910023,VCXO壓控晶體振蕩器,6G無線晶振，參數表

項目	Item	Symbol	LV-PECL	LVDS	Conditions / Remarks
			VG3225EFN / VG5032EFN /	VG3225VFN / VG5032VFN /
			VG7050EFN	VG7050VFN
Output frequency range		fo	25 MHz to 250 MHz		Please contact us for available frequencies, and frequency inquiries above 250 MHz.
Supply voltage		VCC	C: 3.3 V ± 0.165 V
Control voltage		Vc	1.65 V ±1.65 V
Storage temperature		T_stg	-55 °C to +125 °C
Operating temperature		T_use	G: -40 °C to +85 °C, H: -40 °C to +105 °C
Frequency tolerance		f_tol	J: ±50 × 10-6 Max.		Includes initial frequency tolerance, temperature variation, supply voltage change and 10 years aging (+25 °C) at Vc = 1.65 V
			B: ±50 × 10-6 Min.		25 MHz ≤ fo ≤ 42.5 MHz, 50 MHz ≤ fo ≤ 85 MHz, 100 MHz ≤ fo ≤ 170 MHz
Absolute Pull range *1		APR	M: ±20 × 10-6 Min.		Full frequency range
			S: ±10 × 10-6 Min.		Full frequency range
Current consumption		ICC	60 mA Max.	25 mA Max.	OE = VCC, L_ECL = 50 Ω or L_LVDS = 100 Ω
Disable current		I_dis	25 mA Max.	15 mA Max.	OE = GND
Input impedance		Zin	10 MΩ Min.		DC level
Frequency change polarity		-	Positive slope		VC = 0 V to 3.3 V
Symmetry		SYM	45 % to 55 %		At output crossing point
Output voltage (LV-PECL)		VOH	VCC - 1.1 V Min.	–	DC characteristics
		VOL	VCC - 1.5 V Max.	–
Output voltage (LVDS)		VOD	–	250 mV to 450 mV	Differential output voltage, VOD1, VOD2		DC characteristics
		VOS	–	1.15 V to 1.35 V	Offset voltage, VOS1, VOS2
ECL load condition		L_ECL	50 Ω	–	Terminated to VCC - 2.0 V
LVDS load condition		L_LVDS	–	100 Ω	Connected between OUT to OUT
Input voltage		VIH	70 % VCC Min.		OE terminal
		VIL	30 % VCC Max.
Rise/Fall times		tr / tf	0.5 ns Max..	0.3 ns Max.	LV-PECL: Between 20 % and 80 % of (VOH - VOL)
					LVDS: Between 20 % and 80 % of Differential Output peak to peak voltage
Startup time		t_str	10 ms Max.		Time at minimum supply voltage to be 0 s
Phase Jitter		tPJ	120 fs Max.	160 fs Max.	fo = 122.88 MHz	Offset Frequency 12 kHz to 20 MHz
			80 fs Max.	80 fs Max.	fo = 245.76 MHz

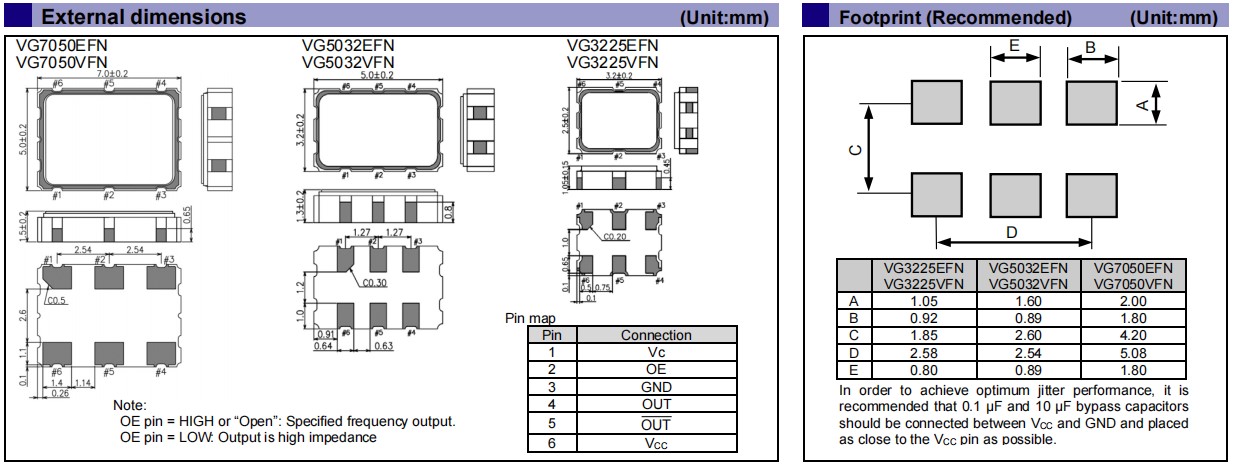

愛普生VG7050EFN差分晶振,X1G0054910023,VCXO壓控晶體振蕩器,6G無線晶振，尺寸圖

愛普生VG7050EFN差分晶振,X1G0054910023,VCXO壓控晶體振蕩器,6G無線晶振
差分晶振是普通貼片晶振所不能夠達到的，差分晶振具有低電平，低抖動，低功耗等特性。差分晶振作為目前行業中高要求，高技術石英晶體振蕩器，具有相位低，損耗低的特點，差分晶振使用于產品中能夠很容易地識別小信號，能夠從容精確地處理雙級信號，對外部電磁干擾(EMI)是高度免疫的。差分石英晶振滿足市場需求,實現高頻高精度等要求，更加保障了各種系統參考時鐘的可靠性。

產品編碼	壓控晶振	頻率	尺寸	輸出	電壓
X1G0045611003	VG7050ECN	622.080000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	2.970 to 3.630 V
X1G0045611005	VG7050ECN	622.080000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	2.970 to 3.630 V
X1G0045611007	VG7050ECN	622.080000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	2.970 to 3.630 V
X1G0054910002	VG7050EFN	122.880000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910008	VG7050EFN	100.000000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910009	VG7050EFN	104.000000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910011	VG7050EFN	120.000000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910012	VG7050EFN	122.880000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910013	VG7050EFN	125.000000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910014	VG7050EFN	148.351600 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910015	VG7050EFN	148.351648 MHz	有源晶振	LV-PECL	3.135 to 3.465 V
X1G0054910016	VG7050EFN	148.500000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910018	VG7050EFN	155.520000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910021	VG7050EFN	156.250000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910023	VG7050EFN	130.031746 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910030	VG7050EFN	160.000000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910601	VG7050EFN	204.800000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910603	VG7050EFN	245.760000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
