石英晶體振蕩器
- 編號：75770560
- 頻率：18.432MHz
- 尺寸：5.0x3.2mm
CFPX-104石英晶振,LFXTAL059529REEL,IQD進口晶振,6G車載晶振
CFPX-104石英晶振,LFXTAL059529REEL,IQD進口晶振,6G車載晶振,LFXTAL032878REEL,5032mm貼片晶振，英國進口晶振，IQD伊克德晶振，型號CFPX-104，編碼為：LFXTAL059529REEL，頻率為：18.4320MHZ18PFSMD石英晶體，小體積晶...
CFPX-104石英晶振,LFXTAL059529REEL,IQD進口晶振,6G車載晶振,LFXTAL032878REEL,5032mm貼片晶振，英國進口晶振，IQD伊克德晶振，型號CFPX-104，編碼為：LFXTAL059529REEL，頻率為：18.4320MHz 18PF SMD石英晶體，小體積晶振尺寸：5.0x3.2mm，標準的5x3.2mm SMD晶體與四個墊片。陶瓷包裝與一個接縫密封的金屬蓋。四腳貼片晶振，無源晶振，石英晶體諧振器，較寬的工作溫度范圍，具有超小型，輕薄型，耐熱及耐環保特點。應用于：通訊設備，無線網絡，藍牙模塊，平板電腦，儀器儀表設備，安防設備，醫療設備，導航儀，數碼電子等應用。

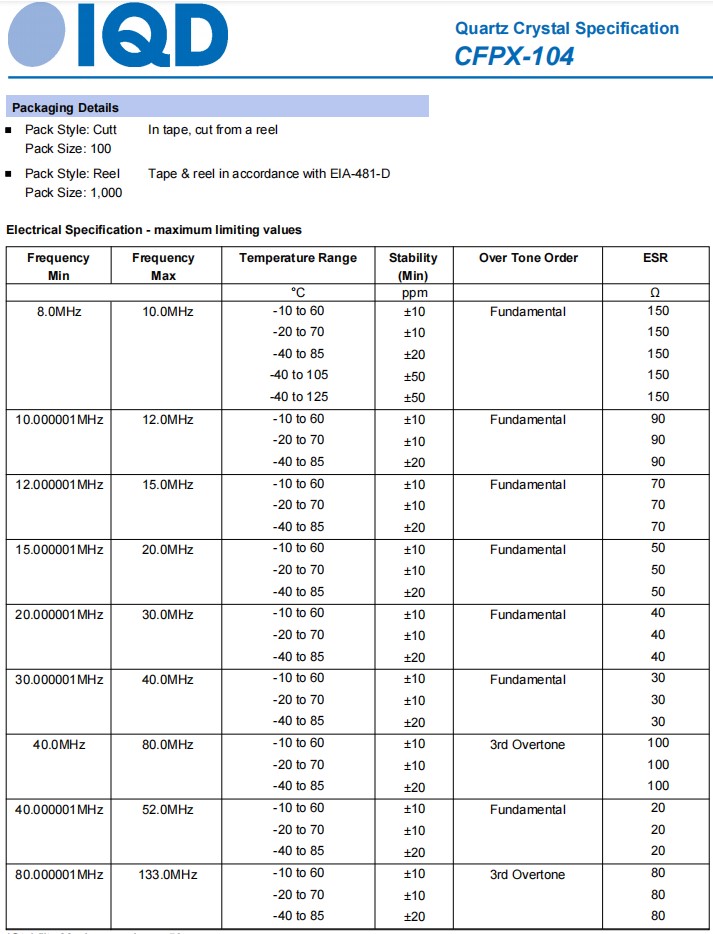

CFPX-104石英晶振,LFXTAL059529REEL,IQD進口晶振,6G車載晶振,LFXTAL032878REEL,5032mm貼片晶振,參數表
| Frequency | 18.4320MHz |
| Frequency Tolerance | ±10.00ppm to ±50.00ppm |
| Tolerance Condition | @ 25°C |
| Frequency Stability | ±10.00ppm to ±50.00ppm |
| Ageing | ±3ppm max per year @ 25°C |
| Electrical Parameters | |
| Load Capacitance (CL) | 10.0pF to 30.0pF |
| Shunt Capacitance (C0) | 7pF max |
| Drive Level | 100uW max |
| Operating Temperature Ranges | -10 to 60℃ |
| -20 to 70℃ | |
| -40 to 85℃ | |
| -40 to 105℃ | |
| -40 to 125℃ |

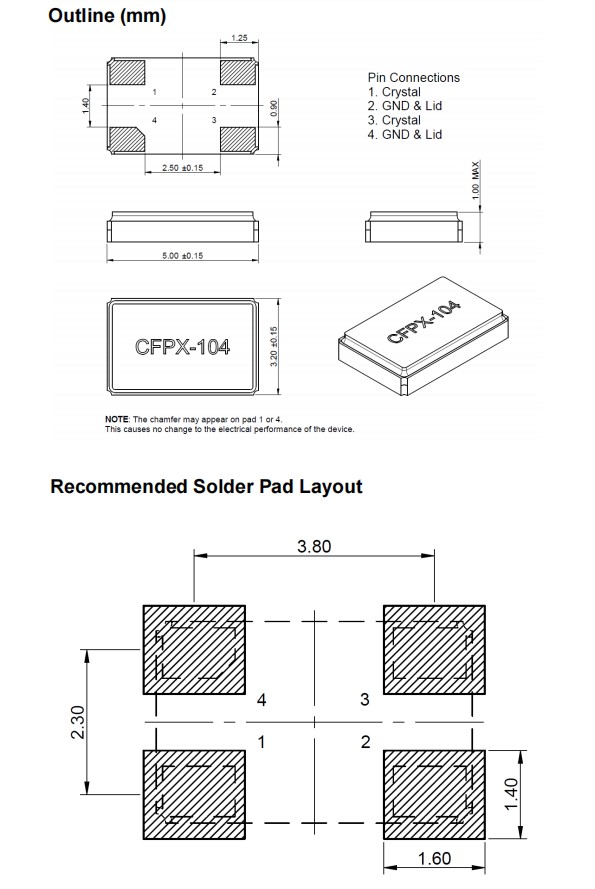

CFPX-104石英晶振,LFXTAL059529REEL,IQD進口晶振,6G車載晶振,LFXTAL032878REEL,5032mm貼片晶振,尺寸圖
CFPX-104石英晶振,LFXTAL059529REEL,IQD進口晶振,6G車載晶振,LFXTAL032878REEL,5032mm貼片晶振
石英晶體諧振器是一種生活中隨處可見的電子器件，誕生于20世紀20年代初，因具有較高的品質因數及良好的頻率穩定性，被廣泛應用于航天、通信、軍事等工業領域。顧名思義，制造石英晶體諧振器的原材料就是石英，一種非常重要的壓電材料。其主要特征是其原子或分子有規律排列，反映在宏觀上是外形的對稱性，在電場的作用下，晶體內部產生應力而形變，從而產生機械振動，獲得特定的頻率。
| 制造商零件編碼 | 制造商 | 系列 | 貼片石英晶振 | 頻率 |
| LFXTAL069277REEL | IQD晶振 | CFPX-104 | CRYSTAL 8.0000MHZ 20PF SMD | 8 MHz |
| LFXTAL059532REEL | IQD晶振 | CFPX-104 | CRYSTAL 25.0000MHZ 18PF SMD | 25 MHz |
| LFXTAL059477REEL | IQD晶振 | CFPX-104 | CRYSTAL 12.8000MHZ 15PF SMD | 12.8 MHz |
| LFXTAL059531REEL | IQD晶振 | CFPX-104 | CRYSTAL 24.5760MHZ 18PF SMD | 24.576 MHz |
| LFXTAL033643REEL | IQD晶振 | CFPX-104 | CRYSTAL 14.31818MHZ 18PF SMD | 14.31818 MHz |
| LFXTAL032878REEL | IQD晶振 | CFPX-104 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz |
| LFXTAL065460REEL | IQD晶振 | CFPX-104 | CRYSTAL 30.0000MHZ 10PF SMD | 30 MHz |
| LFXTAL055901REEL | IQD晶振 | CFPX-104 | CRYSTAL 8.0000MHZ 18PF SMD | 8 MHz |
| LFXTAL059537REEL | IQD晶振 | CFPX-104 | CRYSTAL 40.0000MHZ 18PF SMD | 40 MHz |
| LFXTAL056556REEL | IQD晶振 | CFPX-104 | CRYSTAL 12.5000MHZ 18PF SMD | 12.5 MHz |
| LFXTAL033645REEL | IQD晶振 | CFPX-104 | CRYSTAL 40.0000MHZ 18PF SMD | 40 MHz |
| LFXTAL053798REEL | IQD晶振 | CFPX-104 | CRYSTAL 24.0000MHZ 18PF SMD | 24 MHz |
| LFXTAL059528REEL | IQD晶振 | CFPX-104 | CRYSTAL 16.3840MHZ 18PF SMD | 16.384 MHz |
| LFXTAL072402REEL | IQD晶振 | CFPX-104 | CRYSTAL 10.0000MHZ 18PF SMD | 10 MHz |
| LFXTAL056583REEL | IQD晶振 | CFPX-104 | CRYSTAL 10.0000MHZ 12PF SMD | 10 MHz |
| LFXTAL059529REEL | IQD晶振 | CFPX-104 | CRYSTAL 18.4320MHZ 18PF SMD | 18.432 MHz |
| LFXTAL059539REEL | IQD晶振 | CFPX-104 | CRYSTAL 48.0000MHZ 18PF SMD | 48 MHz |
| LFXTAL055999REEL | IQD晶振 | CFPX-104 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz |
| LFXTAL036401REEL | IQD晶振 | CFPX-104 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz |
| LFXTAL059526REEL | IQD晶振 | CFPX-104 | CRYSTAL 14.31818MHZ 18PF SMD | 14.31818 MHz |
| LFXTAL059535REEL | IQD晶振 | CFPX-104 | CRYSTAL 32.0000MHZ 18PF SMD | 32 MHz |
| LFXTAL059530REEL | IQD晶振 | CFPX-104 | CRYSTAL 24.0000MHZ 18PF SMD | 24 MHz |
| LFXTAL030820REEL | IQD晶振 | CFPX-104 | CRYSTAL 30.0000MHZ 18PF SMD | 30 MHz |
| LFXTAL033075REEL | IQD晶振 | CFPX-104 | CRYSTAL 25.0000MHZ 18PF SMD | 25 MHz |
| LFXTAL032817REEL | IQD晶振 | CFPX-104 | CRYSTAL 24.0000MHZ 18PF SMD | 24 MHz |
| LFXTAL059523REEL | IQD晶振 | CFPX-104 | CRYSTAL 12.2880MHZ 18PF SMD | 12.288 MHz |
| LFXTAL030819REEL | IQD晶振 | CFPX-104 | CRYSTAL 16.0000MHZ 18PF SMD | 16 MHz |
| LFXTAL061627REEL | IQD晶振 | CFPX-104 | CRYSTAL 8.0000MHZ 16PF SMD | 8 MHz |
| LFXTAL033265REEL | IQD晶振 | CFPX-104 | CRYSTAL 20.0000MHZ 18PF SMD | 20 MHz |
| LFXTAL072404BULK | IQD晶振 | CFPX-104 | CRYSTAL 26.0000MHZ 18PF SMD | 26 MHz |
| LFXTAL059535BULK | IQD晶振 | CFPX-104 | CRYSTAL 32.0000MHZ 18PF SMD | 32 MHz |
| LFXTAL033643BULK | IQD晶振 | CFPX-104 | CRYSTAL 14.31818MHZ 18PF SMD | 14.31818 MHz |
| LFXTAL059539BULK | IQD晶振 | CFPX-104 | CRYSTAL 48.0000MHZ 18PF SMD | 48 MHz |
| LFXTAL030820BULK | IQD晶振 | CFPX-104 | CRYSTAL 30.0000MHZ 18PF SMD | 30 MHz |
| LFXTAL059537BULK | IQD晶振 | CFPX-104 | CRYSTAL 40.0000MHZ 18PF SMD | 40 MHz |
| LFXTAL033645BULK | IQD晶振 | CFPX-104 | CRYSTAL 40.0000MHZ 18PF SMD | 40 MHz |
| LFXTAL059528BULK | IQD晶振 | CFPX-104 | CRYSTAL 16.3840MHZ 18PF SMD | 16.384 MHz |
| LFXTAL059530BULK | IQD晶振 | CFPX-104 | CRYSTAL 24.0000MHZ 18PF SMD | 24 MHz |
| LFXTAL033075BULK | IQD晶振 | CFPX-104 | CRYSTAL 25.0000MHZ 18PF SMD | 25 MHz |
| LFXTAL059523BULK | IQD晶振 | CFPX-104 | CRYSTAL 12.2880MHZ 18PF SMD | 12.288 MHz |
| LFXTAL055663BULK | IQD晶振 | CFPX-104 | CRYSTAL 8.0000MHZ 18PF SMD | 8 MHz |
| LFXTAL059531BULK | IQD晶振 | CFPX-104 | CRYSTAL 24.5760MHZ 18PF SMD | 24.576 MHz |
| LFXTAL033265BULK | IQD晶振 | CFPX-104 | 20.0000MHZ 18PF 石英晶振 | 20 MHz |
| LFXTAL032878BULK | IQD晶振 | CFPX-104 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz |
| LFXTAL059532BULK | IQD晶振 | CFPX-104 | CRYSTAL 25.0000MHZ 18PF SMD | 25 MHz |
| LFXTAL033328BULK | IQD晶振 | CFPX-104 | CRYSTAL 14.7456MHZ 18PF SMD | 14.7456 MHz |
| LFXTAL059522BULK | IQD晶振 | CFPX-104 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz |
| LFXTAL032817BULK | IQD晶振 | CFPX-104 | CRYSTAL 24.0000MHZ 18PF SMD | 24 MHz |
| LFXTAL059526BULK | IQD晶振 | CFPX-104 | CRYSTAL 14.31818MHZ 18PF SMD | 14.31818 MHz |
| LFXTAL033644BULK | IQD晶振 | CFPX-104 | CRYSTAL 24.5760MHZ 18PF SMD | 24.576 MHz |
| LFXTAL050518REEL | IQD晶振 | CFPX-104 | CRYSTAL 12.0000MHZ 12PF SMD | 12 MHz |
| LFXTAL055663REEL | IQD晶振 | CFPX-104 | CRYSTAL 8.0000MHZ 18PF SMD | 8 MHz |
| LFXTAL061633REEL | IQD晶振 | CFPX-104 | CRYSTAL 13.5600MHZ 16PF SMD | 13.56 MHz |
| LFXTAL059158REEL | IQD晶振 | CFPX-104 | CRYSTAL 8.0000MHZ 16PF SMD | 8 MHz |
| LFXTAL061486REEL | IQD晶振 | CFPX-104 | CRYSTAL 8.1920MHZ 10PF SMD | 8.192 MHz |
| LFXTAL056808REEL | IQD晶振 | CFPX-104 | CRYSTAL 20.0000MHZ 18PF SMD | 20 MHz |
| LFXTAL061642REEL | IQD晶振 | CFPX-104 | CRYSTAL 25.0000MHZ 16PF SMD | 25 MHz |
| LFXTAL059522REEL | IQD晶振 | CFPX-104 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz |
| LFXTAL075997REEL | IQD晶振 | CFPX-104 | CRYSTAL 9.9000MHZ SURFACE MOUNT | 9.9 MHz |
| LFXTAL030819BULK | IQD晶振 | CFPX-104 | CRYSTAL 16.0000MHZ 18PF SMD | 16 MHz |
| LFXTAL056808BULK | IQD晶振 | CFPX-104 | CRYSTAL 20.0000MHZ 18PF SMD | 20 MHz |
| LFXTAL059529BULK | IQD晶振 | CFPX-104 | CRYSTAL 18.4320MHZ 18PF SMD | 18.432 MHz |
| LFXTAL065111REEL | IQD晶振 | CFPX-104 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz |
| LFXTAL072404REEL | IQD晶振 | CFPX-104 | CRYSTAL 26.0000MHZ 18PF SMD | 26 MHz |
| LFXTAL033644REEL | IQD晶振 | CFPX-104 | CRYSTAL 24.5760MHZ 18PF SMD | 24.576 MHz |
| LFXTAL059540REEL | IQD晶振 | CFPX-104 | CRYSTAL 8.0000MHZ 10PF SMD | 8 MHz |
| LFXTAL036584REEL | IQD晶振 | CFPX-104 | CRYSTAL 12.0000MHZ 10PF SMD | 12 MHz |
| LFXTAL059701REEL | IQD晶振 | CFPX-104 | CRYSTAL 32.0000MHZ 10PF SMD | 32 MHz |
| LFXTAL033328REEL | IQD晶振 | CFPX-104 | CRYSTAL 14.7456MHZ 18PF SMD | 14.7456 MHz |
| LFXTAL060203REEL | IQD晶振 | CFPX-104 | CRYSTAL 10.0000MHZ 10PF SMD | 10 MHz |
| LFXTAL059699REEL | IQD晶振 | CFPX-104 | CRYSTAL 30.0000MHZ 10PF SMD | 30 MHz |
| LFXTAL036939REEL | IQD晶振 | CFPX-104 | CRYSTAL 25.0000MHZ 10PF SMD | 25 MHz |
| LFXTAL060218REEL | IQD晶振 | CFPX-104 | CRYSTAL 20.0000MHZ 10PF SMD | 20 MHz |
| LFXTAL059524REEL | IQD晶振 | CFPX-104 | CRYSTAL 13.0000MHZ 18PF SMD | 13 MHz |
| LFXTAL036364REEL | IQD晶振 | CFPX-104 | CRYSTAL 19.2000MHZ 12PF SMD | 19.2 MHz |
| LFXTAL035571REEL | IQD晶振 | CFPX-104 | CRYSTAL 26.0000MHZ 10PF SMD | 26 MHz |
| LFXTAL063061REEL | IQD晶振 | CFPX-104 | CRYSTAL 12.0000MHZ 16PF SMD | 12 MHz |
| LFXTAL059533REEL | IQD晶振 | CFPX-104 | CRYSTAL 27.0000MHZ 18PF SMD | 27 MHz |
| LFXTAL055283REEL | IQD晶振 | CFPX-104 | CRYSTAL 16.0000MHZ 10PF SMD | 16 MHz |
| LFXTAL059697REEL | IQD晶振 | CFPX-104 | CRYSTAL 27.0000MHZ 10PF SMD | 27 MHz |
