- 編號：31836287
- 頻率：16~54MHz
- 尺寸：2.0x1.6mm
臺灣H.ELE加高晶體諧振器,HSX211G石英貼片晶振,平板電腦6G晶振
臺灣H.ELE加高晶體諧振器,HSX211G石英貼片晶振,平板電腦6G晶振,無鉛環保晶振,小型便捷式設備晶振，臺灣H.ELE加高晶振，型號：HSX211G，小體積晶振尺寸：2.0x1.6mm封裝，石英晶體諧振器，四腳貼片晶振，無源晶振，貼片...
TXC,NDK,希華.jpg)
臺灣H.ELE加高晶體諧振器,HSX211G石英貼片晶振,平板電腦6G晶振,無鉛環保晶振,小型便捷式設備晶振，臺灣H.ELE加高晶振，型號：HSX211G，小體積晶振尺寸：2.0x1.6mm封裝，石英晶體諧振器，四腳貼片晶振，無源晶振，貼片石英晶振，無鉛環保晶振，頻率范圍：16MHz至54MHz，工作溫度范圍選項：-30℃至+85℃，-40℃至 +105℃，-40℃至+125℃。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境特點。被廣泛應用于：汽車電子，手機晶振，車載控制器，通訊設備，無線網絡，藍牙模塊，可穿戴設備，小型便捷式設備，平板電腦，消費電子，數碼電子等應用。
格發TXC,NDK,希華.jpg)

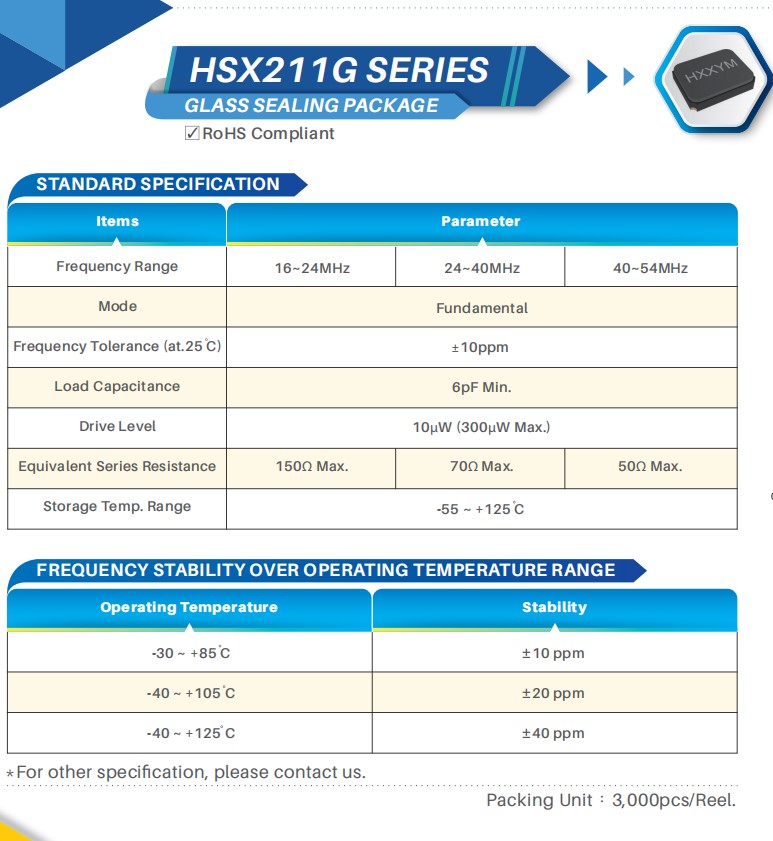

臺灣H.ELE加高晶體諧振器,HSX211G石英貼片晶振,平板電腦6G晶振,無鉛環保晶振,小型便捷式設備晶振，參數表
| Frequency Range | 16~24MHz | 24~40MHz | 40~54MHz |
| Mode | Fundamental | ||
| Frequency Tolerance (at.25 C) |
±10ppm
|
||
| Load Capacitance | 6pF Min. | ||
| Drive Level | 10μW (300μW Max.) | ||
| Equivalent Series Resistance | 150Ω Max. | 70Ω Max. | 50Ω Max. |
| Storage Temp. Range |
-55 ~ +125 C
|
||

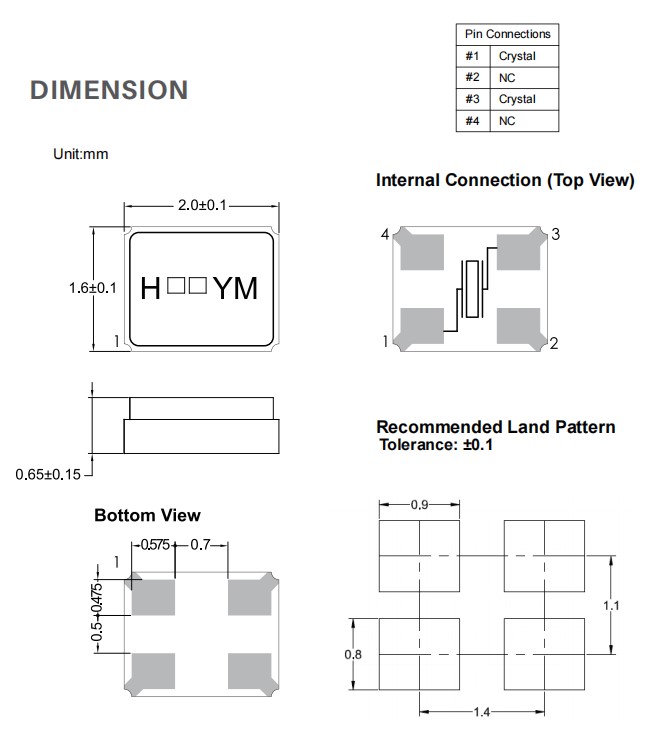

臺灣H.ELE加高晶體諧振器,HSX211G石英貼片晶振,平板電腦6G晶振,無鉛環保晶振,小型便捷式設備晶振，尺寸圖
臺灣H.ELE加高晶體諧振器,HSX211G石英貼片晶振,平板電腦6G晶振,無鉛環保晶振,小型便捷式設備晶振
2016mm體積的晶振,可以說是目前小型數碼產品的福音,目前超小型的智能手機里面所應用的就是小型的石英晶振,該產品最適用于無線通訊系統,無線局域網,已實現低相位噪聲,低電壓,低消費電流和高穩定度,超小型,質量輕等產品特點,產品本身編帶包裝方式,可對應自動高速貼片機應用,以及高溫回流焊接（產品無鉛對應）,為無鉛產品.
| 編碼 | 型號 | 加高晶振 | 描述 |
| X3S027000BA1H-U | HSX321S | H.ELE加高 | HSX321S/27MHZ/10PF/10PPM/10PPM@- |
| X3S024000B91H-HS | HSX321S | H.ELE加高 | HSX321S/24MHZ/9PF/10PPM/15PPM@-4 |
| X3S027120BA1H-X | HSX321S | H.ELE加高 | HSX321S/27.12MHZ/10PF/10PPM/20PP |
| X3S032000BC1HA-CHPZ | HSX321S | H.ELE加高 | HSX321S/32MHZ/12PF/10PPM/10PPM@- |
| X3S016000DI1H-HW | HSX321S | H.ELE加高 | HSX321S/16MHZ/18PF/20PPM/20PPM@- |
| X3S012000FI1H-HV | HSX321S | H.ELE加高 | HSX321S/12MHZ/18PF/30PPM/30PPM@- |
| X3S025000D81H-HU | HSX321S | H.ELE加高 | HSX321S/25MHZ/8PF/20PPM/20PPM@-4 |
| X3S026000B91H-NZ | HSX321S | H.ELE加高 | HSX321S/26MHZ/9PF/10PPM/10PPM@-3 |
| X2B026000M81H-HS | HSX221SA | H.ELE加高 | HSX221SA/26MHZ/8PF/7PPM/15PPM/-4 |
| X2B016000BA1H-U | HSX221SA | H.ELE加高 | HSX221SA/16MHZ/10PF/10PPM/10PPM/ |
| X2B012000BC1H-U | HSX221SA | H.ELE加高 | HSX221SA/12MHZ/12PF/10PPM/20PPM/ |
| X2B040000BC1H-DHZ | HSX221SA | H.ELE加高 | HSX221SA/40MHZ/12PF/10PPM/10PPM/ |
| X2C025000DZ1H-U | HSX211S | H.ELE加高 | HSX211S/25MHZ/6PF/20PPM/20PPM@-3 |
| X2C032000BA1H-HZ | HSX211S | H.ELE加高 | HSX211S/32MHZ/10PF/10PPM/15PPM@- |
| X2C024000DZ1H-HU | HSX211S | H.ELE加高 | HSX211S/24MHZ/6PF/20PPM/20PPM@-3 |
| X2C016000B81H-R | HSX211S | H.ELE加高 | HSX211S/16MHZ/8PF/10PPM/10PPM@-2 |
| X2C026000BC1H-Z | HSX211S | H.ELE加高 | HSX211S/26MHZ/12PF/10PPM/10PPM@- |
| X1C032000B81H-HR | HSX111S | H.ELE加高 | HSX111S/32MHZ/8PF/10PPM/10PPM@-2 |
| X1C024000B81H-HV | HSX111S | H.ELE加高 | HSX111S/24MHZ/8PF/10PPM/30PPM@-4 |
| X2C048000L71HH-CEHZ | HSX211S | H.ELE加高 | HSX211S/48MHZ/11.1PF/8PPM/14PPM/ |
| X2R026000BZ1HAZ-DHPZ | HSX221SR | H.ELE加高 | HSX221SR/26MHZ/7PF/10PPM/-30~105 |
| X1R038400B81HA-CEHPZ | HSX111SR | H.ELE加高 | HSX111SR/38.4MHZ/8PF/10PPM/-40~1 |
| X2U026000B81HBZ-DHPZ | HSX211SR | H.ELE加高 | HSX211SR/26MHZ/8PF/10PPM/-40~105 |
| X2R026000B91HZ-DEHPZ | HSX221SR | H.ELE加高 | HSX221SR/26MHZ/9PF/10PPM/-30~85C |
| X2R019200BZ1H-CHZ | HSX221SR | H.ELE加高 | HSX221SR/19.2MHZ/7PF/10PPM/-30~8 |
| X2U019200BZ1H-CEHQZ | HSX211SR | H.ELE加高 | HSX211SR/19.2MHZ/7PF/10PPM/-40~1 |
| X2U038400B81H-EPQZ | HSX211SR | 無源晶振 | HSX211SR/38.4MHZ/8PF/10PPM/-30~1 |
| X1R052000B81HZ-DEHPZ | HSX111SR | H.ELE加高 | HSX111SR/52MHZ/8PF/10PPM/-40~105 |
| X12A040000BZ1H-HZ | HSX1210A | H.ELE加高 | HSX1210A/40MHZ/6PF/10PPM/12PPM/- |
| X12A032000B81H-HZ | HSX1210A | H.ELE加高 | HSX1210A/32MHZ/8PF/10PPM/10PPM/- |
| X3S012000BK1H | HSX321S | H.ELE加高 | SMD Crystal Resonators 12MHz ±10ppm SMD-3225_4P RoHS |
| X3S025000BK1H | HSX321S | H.ELE加高 | SMD Crystal Resonators 25MHz ±10ppm SMD-3225_4P RoHS |
| X3S038400B91H-HU | HSX321S | H.ELE加高 | SMD Crystal Resonators 38.4MHz ±10ppm SMD-3225_4P RoHS |
| X2B012000DC1H-X | HSX221SA | H.ELE加高 | SMD Crystal Resonators 12MHz ±20ppm SMD-2520_4P RoHS |
| X2B016000B91H-HU | HSX221SA | H.ELE加高 | SMD Crystal Resonators 16MHz ±10ppm SMD-2520_4P RoHS |
| X3S037400B91H-Z | HSX321S | H.ELE加高 | SMD Crystal Resonators 37.4MHz ±10ppm SMD-3225_4P RoHS |
| X3S024000B91HA-R | HSX321S | H.ELE加高 | SMD Crystal Resonators 24MHz ±10ppm SMD-3225_4P RoHS |
| X3S024000BK1H | HSX321S | H.ELE加高 | SMD Crystal Resonators 24MHz ±10ppm SMD-3225_4P RoHS |
| X2B027000BC1H-HU | HSX221SA | H.ELE加高 | SMD Crystal Resonators 27MHz ±10ppm SMD-2520_4P RoHS |
| X3S024000BG1HA-Z | HSX321S | H.ELE加高 | SMD Crystal Resonators 24MHz ±10ppm SMD-3225_4P RoHS |
| X3S040000BA1H-R | HSX321S | H.ELE加高 | SMD Crystal Resonators 40MHz ±10ppm SMD-3225_4P RoHS |
| X3S024000B91H-DEPV | HSX321S | H.ELE加高 | SMD Crystal Resonators SMD-3225_4P RoHS |
| X3S037400BA1H-Z | HSX321S | H.ELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S019200BZ1H-CHZ | HSX321S | H.ELE加高 | SMD Crystal Resonators SMD-3225_4P RoHS |
| X2B032000BC1H-HZ | HSX221SA | H.ELE加高 | SMD Crystal Resonators SMD-2520_4P RoHS |
| X3S013000BA1H-V | HSX321S | H.ELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S026000B71HA-R | HSX321S | H.ELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S027120DC1H-V | HSX321S | H.ELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S01431AFK1H | HSX321S | H.ELE加高 | SMD Crystal Resonators SMD-3225-4P RoHS |
| X3S026000BB1H-CHZ | HSX321S | H.ELE加高 | SMD Crystal Resonators 26MHz ±10ppm SMD-3225_4P RoHS |
| X3S016384DI1H-W | HSX321S | H.ELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
